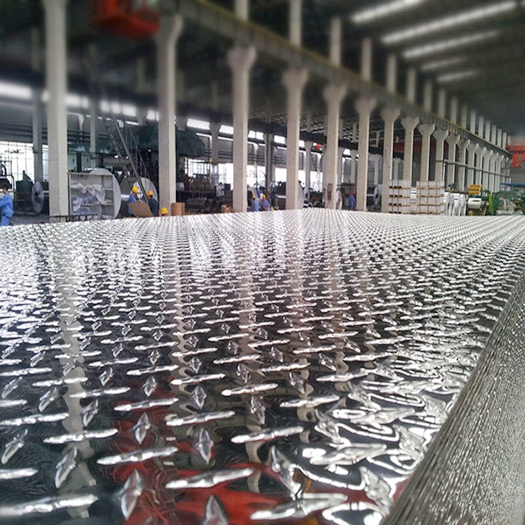

3003 Aluminum Diamond Plate

3003 Aluminum Diamond Plate

3000 series aluminum is a kind of rust-proof aluminum alloy widely used. It is processed by using 3003 aluminum plate as raw material. Its strength is slightly higher than 1000 series aluminum plate.

It has good rust resistance, but has medium strength and cannot be heat-treated to strengthen it.

Generally using cold processing method to improve mechanical properties, in the annealing state has a high plasticity, moderate corrosion resistance.

The 3003 aluminum diamond plate is often used for stair anti-slip, can be used overhead, and can also be used in humid environments.

3003 Aluminum Diamond Plate

Chemical property

alloy	Si	Fe	Cu	Mn	Zn	others		Al
						single	total
3003	0.6	0.7	0.05-0.2	1.0-1.5	0.13	0.05	0.15	remain

Physical property

Alloy	Temper	Thickness	Tensile strength	Yield strength	Elongation rate %		Bending radius
Alloy	Temper	mm	Rb/MPa	Rp0.2/MPa	A50mm	A5.65°	Bending radius
3003	O	＞0.2-0.5	≥95-140	≥35	12		0t
		＞0.5-1.5			17		0t
		＞1.5-3.0			20		0t
		＞3.0-6.0			23		1.0t
		＞6.0-12.5			24		1.5t
		＞12.5-50				23
	H12	＞0.2-0.5	≥120-160	≥90	3		0t
		＞0.5-1.5			4		0.5t
		＞1.5-3.0			5		1.0t
		＞3.0-6.0			6		1.0t
	H14	＞0.2-0.5	≥145-195	≥125	2		0.5t
		＞0.5-1.5			2		1.0t
		＞1.5-3.0			3		1.0t
		＞3.0-6.0			4		2.0t
	H16	＞0.2-0.5	≥170-210	≥150	1		1.0t
		＞0.5-1.5			2		1.5t
		＞1.5-4.0			2		2.0t
	H18	＞0.2-0.5	≥190	≥170	1		1.5t
		＞0.5-1.5			2		2.5t
		＞1.5-4.0			2		3.0t
	H22	＞0.2-0.5	≥120-160	≥80	6		0t
		＞0.5-1.5			7		0.5t
		＞1.5-3.0			8		1.0t
		＞3.0-6.0			9		1.0t
	H24	＞0.2-0.5	≥145-195	≥115	4		0.5t
		＞0.5-1.5			4		1.0t
		＞1.5-3.0			5		1.0t
		＞3.0-6.0			6		2.0t
	H26	＞0.2-0.5	≥170-210	≥140	2		1.0t
		＞0.5-1.5			3		1.5t
		＞1.5-4.0			3		2.0t
	H28	＞0.2-0.5	≥190	≥160	2		1.5t
		＞0.5-1.5			2		2.5t
		＞1.5-3.0			3		3.0t
	H112	＞6.0-12.5	≥115	≥70	10
	H112	＞12.5-80	≥100	≥40		18
	F	＞2.5-150

3003 Aluminum Diamond Plate

Our packing meets the sea export standard.

Surface could cover with paper or as customer’s need.

Special requirements of packing could be negotiate before order.

aluminum diamond plate

3003 Aluminum Diamond Plate

3003 diamond tread plate has good corrosion prevention ability, so it can be used for ship deck, floor of the cold storage, truck floor and body.

Our customers also use it to make boxes, for decoration. Besides, it is widely used in construction.

aluminum diamond plate application
